Embedded all-plastic PP oil-filled pressure gauge

Quantity:

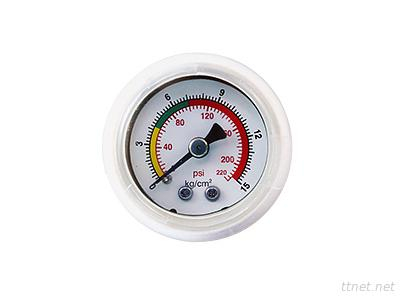

Embedded all-plastic PP oil-filled pressure gauge
The world's exclusive all-plastic PP. Integrally oil-filled pressure gauge is suitable to be used in oil, water, air and other non-corrosive gases, and fluid environment. It is primarily used in frequently lift and intense vibration work environment. Safe structure. Quick installation.

Product Specifications:
Size:
40mm (1.5")
Accuracy:
±1.5~3% F.S.D
Pressure Range:
76-0cmHg~-76-30 kg/cm²
Temperature Range: Operating temperature of max 100℃
Ambient Temperature: -20℃~60℃
Machine Material: Copper
Bourdon Tube: Copper
Housing Material: PP
Cover Material: PP
Mirror Material: PP
Connector Material: PP
Connector Size: 12mm, -1/8"PT.7/16"UNF, 2 point quick connector
Panel Material: Aluminum
Country of Origin:Taiwan
Competitive Advantages:Well and High Quality Control
Sales Method:Export ,Manufacture
