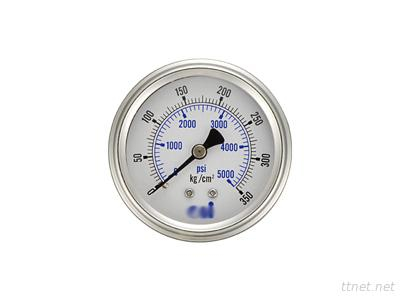

Oil-Filled Embedded All-Stainless Steel Pressore Gauges

Quantity:
Oil-Filled Embedded All-Stainless Steel Pressore Gauges
Applied to an acid, alkali or clean requirements of the fluid environment.
Especially suitable for the food industry, petrochemical industry, water purification equipment.
Specifications:

Size table :
60mm、75mm、100mm
Accuracy:
±0.5~1.5% F.S.D
Pressure Range :
76-0cmHg~-76-30 kg/cm²
1~1000 kg/cm² (bar.Mpa.kpa.psi)
Operatingw:orking temperature: -Max 60℃
Temperature:Ambient: -25℃ ~60℃
Movement:AISI 316
Bourdon Tube:AISI 316L
Case:AISI 304
Upper Ring:AISI 304
Window:Laminated safety glass or Acrylic
Connection:AISI 316
2.5"-14mm,18mm-1/4",3/8"PT.NPT.PF
3"-14mm,18mm-1/4",3/8"PT.NPT.PF
4"-22mm-1/4",3/8,1/2" PT,NPT,PF
Dial:Aluminium in white
Pointer:Aluminium in black
Filling:
99.7% Glycerin
100# silicone oil
1000# silicone oil
Country of Origin:Taiwan
Competitive Advantages:Well and High Quality Control
Sales Method:Export ,Manufacture
