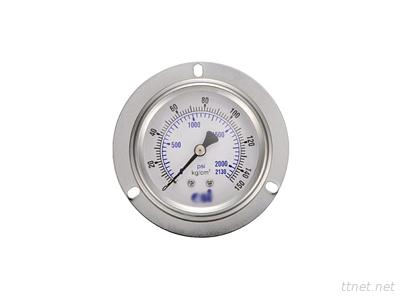

Oil-Filled Embedded All-Stainless Steel Pressure Gauge Attached To The Front

Quantity:
Oil-Filled Embedded All-Stainless Steel Pressure Gauge Attached To The Front
Applied to an acid, alkali or clean requirements of the fluid environment.
Especially suitable for the food industry, petrochemical industry, water purification equipment.
Specifications:

Size table :
60mm、75mm、100mm 、150mm
Accuracy:
±0.5~1.5% F.S.D
Pressure Range :
76-0cmHg~-76-30 kg/cm²
1~1000 kg/cm² (bar.Mpa.kpa.psi)
Operatingw:orking temperature: -Max 60℃
Temperature:Ambient: -25℃ ~60℃
Movement:AISI 316
Bourdon Tube:AISI 316L
Case:AISI 304
Upper Ring:AISI 304
Window:Laminated safety glass or Acrylic
Connection:AISI 316
2.5"~3"-14mm,18mm-1/4",3/8"PT.NPT.PF
4"~6"-22mm-1/4",3/8,1/2" PT,NPT,PF
Dial:Aluminium in white
Pointer:Aluminium in black
Filling:
99.7% Glycerin
100# silicone oil
1000# silicone oil
Country of Origin:Taiwan
Competitive Advantages:Well and High Quality Control
Sales Method:Export ,Manufacture
