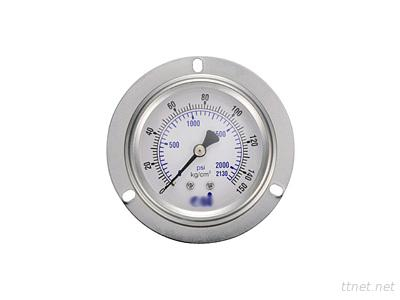

Oil-filled Embedded Pressure Gauge Attached to the Front

Quantity:
Oil-filled Embedded Pressure Gauge Attached to the Front
Apply to oil, water, air, and other non-corrosive gas and fluid environment.
Used mainly in the Buck frequent and intense vibration of the working environment.
Specifications:

Size table :
40mm、50mm、60mm、75mm、100mm 、150mm
Accuracy:
±0.5~2% F.S.D
Pressure Range :
-76-0cmHg~-76-30 kg/cm²
1~1000 kg/cm² (bar.Mpa.kpa.psi)
Operatingw:orking temperature: -Max 60℃
Temperature:Ambient: -25℃ ~60℃
Movement:Brass
Bourdon Tube:Brass
Case:AISI 304
Upper Ring:AISI 304
Window:Laminated safety glass or Acrylic
Connection:Brass
1.5",2"-12mm,14mm-1/8",1/4"PT.NPT.PF
2.5"-14mm,18mm-1/4",3/8"PT.NPT.PF
3"-14mm,18mm-1/4",3/8"PT.NPT.PF
4"~6"-22mm-1/4",3/8,1/2" PT,NPT,PF
Dial:Aluminium in white
Pointer:Aluminium in black
Filling:
99.7% Glycerin
100# silicone oil
1000# silicone oil
Country of Origin:Taiwan
Competitive Advantages:Well and High Quality Control
Sales Method:Export ,Manufacture
