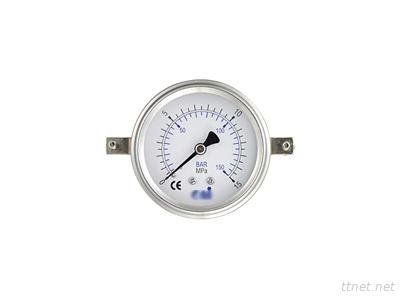

Attached To Submerged Oil-Filled U-Type All-Stainless Steel Pressure Gauge Applied to an acid, alkali or clean requirements of the fluid environment. Especially suitable for the food industry, petrochemical industry, water purification equipment. Specifications:
Size table : 60mm、75mm、100mm Accuracy: ±0.5~1.5% F.S.D Pressure Range : 76-0cmHg~-76-30 kg/cm² 1~1000 kg/cm² (bar.Mpa.kpa.psi) Operatingw:orking temperature: -Max 60℃ Temperature:Ambient: -25℃ ~60℃ Movement:AISI 316 Bourdon Tube:AISI 316L Case:AISI 304 Upper Ring:AISI 304 Window:Laminated safety glass or Acrylic Connection:AISI 316 2.5"-14mm,18mm-1/4",3/8"PT.NPT.PF 3"-14mm,18mm-1/4",3/8"PT.NPT.PF 4"-22mm-1/4",3/8,1/2" PT,NPT,PF Dial:Aluminium in white Pointer:Aluminium in black Filling: 99.7% Glycerin 100# silicone oil 1000# silicone oil Country of Origin：Taiwan Competitive Advantages：Well and High Quality Control Sales Method：Export ,Manufacture
